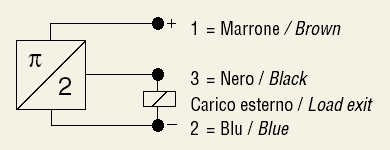

| SWITCH SPECIFICATIONS: |
| Tension | 24 V DC |
| Max current (at 25°C) | 250 mA |
| Electric circuit | PNP |
| Protection class | IP 67 (DIN 40050) |
Cable (mm2)
Length (mm) | 3x0.25
2500 |
| Temperature range (°C) | -20 +80 |
| Indicating | LED |
|
|
|

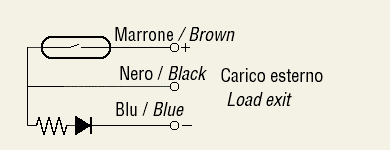

| SWITCH SPECIFICATIONS: |
| Tension | 24 V AC/DC |
| Max current (at 25°C) | 250 mA |
| Electric circuit | REED |
| Protection class | IP 67 (DIN 40050) |
Cable (mm2)
Length (mm) | 3x0.14
2500 |
| Temperature range (°C) | -20 +80 |
| Indicating | LED |
|
|
