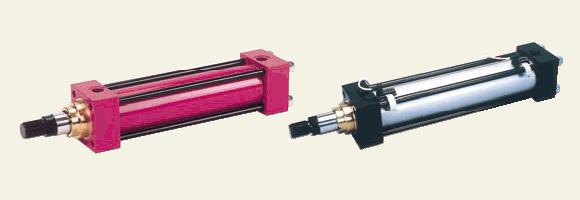

CD  STANDARD
Standard cylinders	ISO 6020/2 - 1991 DIN 24554 tie rods
Pressure bar	operating 160	peak 210	test 240
Max speed m/s	standard 0.5	low friction (Y) 1
Fluid temperature °C	standard -20  +80	vitonŽ W -20  +150
Max stroke mm	4000
Stroke tolerance	0 + 2 mm ISO 8131
Fluid	Hydraulic mineral oil Phosphoric esters (W)
Viscosity	12 .. 90 mm2/s

MD  MAGNETIC
Standard cylinders	ISO 6020/2 DIN 24554 tie rods
Max pressure bar	160
Max speed m/s	0.5
Fluid temperature °C	-20  +80
Max stroke mm	1500
Minimum stroke mm	50
