Solar S.a.s. - ISO 6020/2 catalogue - Hydraulic cylinders - Technical tables

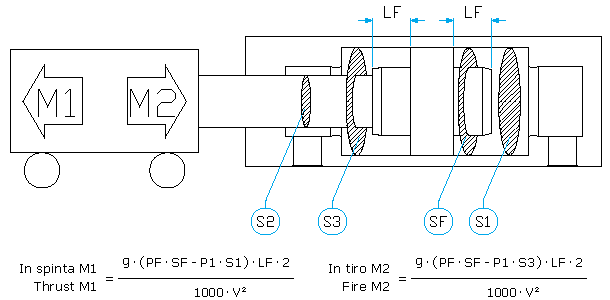

BRAKING SECTIONS AND STROKES:

SYMBOLS: M1/M2 Braking load (daN) PF Braking pressure (max. 250 bar) SF Braking section (cm2) LF Braking length (mm) P1 Working pressure (bar) S1/S3 Working section (cm2) g 9.81 V Speed (m/sec)

DIMENSIONS: Piston Rod S1 cm2 S2 cm2 S3 cm2 SF cm2 LF mm2 25 12 4.9 1.1 3.8 1.8 12 18 2.5 2.4 32 14 8 1.5 6.5 3.5 14 18 2.5 5.5 22 3.8 4.2 40 18 12.6 2.5 10 5.5 23 22 3.8 8.8 28 6.2 6.4 50 22 19.6 3.8 15.8 8.3 21 28 6.2 13.5 36 10.2 9.6 63 28 31.2 6.2 25 13.8 21 36 10.2 21 45 15.9 15.3 80 36 50.3 10.2 40.1 23.8 28 45 15.9 34.4 56 24.6 25.6 100 45 78.5 15.9 62.6 37.8 28 56 24.6 53.9 70 38.5 40.1 125 55 123 25 98 56 26 70 38 84 90 64 59 160 70 201 38 163 99 30 90 64 137 110 95 106 200 90 314 64 251 151 44 110 95 219 140 154 160
